BY57BLY03 133W 0.33N.m brushless dc motor

  • 1
  • 2

Place of Origin : Changzhou

Brand Name : Bang Yi

Model Number : BY57BLY03

Certification : CCC , SGS IS9000

Price : USD40/PCS

Packaging Details : CARTON

Delivery Time : 20 WORKING DAYS

Payment Terms : T/T IN ADVANCE, Western Union

Supply Ability : 5000/month

MOQ : 50pcs

Model : BY57BLY03

Voltage : 36VDC

Rated speed : 4000rpm

Rated torque : 0.32N.m

Power : 133W

Length : 95mm

Weight : 1kg

Contact Now

Brushless DC Motor BY57BLY03

BY57BLY03 133W 0.33N.m brushless dc motor

BY57BLY03 133W 0.33N.m brushless dc motor

Specifications:

Model BY57BLY03
Voltage(VDC) 36
Power(W) 133
Rated speed(rpm) 4000
Rated current(A) 2.2
Rated torque(N.m) 0.32
Peak current(A) 16.5
Peak torque(N.m) 1
Back EMF(v/krpm) 6.6
Torque constnt(N.m/A) 0.063
Rotor inertia(Kg.cm 2) 173
Number of poles 4
Length 95
Motor weight 1

Remark:

1. We can produce motor according to customer's requirements.

2. Motor can add gearbox and encoder.

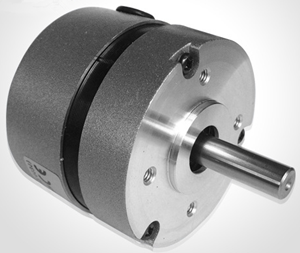

Figure: ( round flange)

BY57BLY03 133W 0.33N.m brushless dc motor

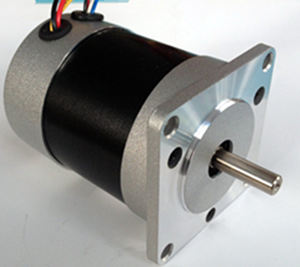

Figure:(square flange)

BY57BLY03 133W 0.33N.m brushless dc motor


Product Tags:

Brushless dc motor



DC servo motor



Electric motor

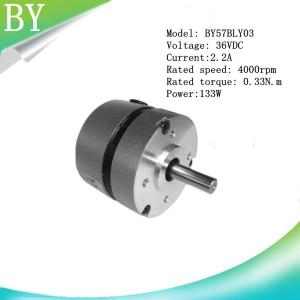

Cheap BY57BLY03 133W 0.33N.m brushless dc motor wholesale
