BLDC MOTOR 57mm BY57BLY005 36VDC 4000rpm high speed brushless motor

Product Categories
Changzhou Bangyi Machinery Co.,ltd.
Contact Now

BLDC MOTOR 57mm BY57BLY005 36VDC 4000rpm high speed brushless motor

  • 1
  • 2

Place of Origin : Changzhou

Brand Name : BangYi

Model Number : BY57BLY005

Certification : CCC , SGS IS9000

Price : USD29.2/PCS

Packaging Details : CARTON

Delivery Time : 20 WORKING DAYS

Payment Terms : T/T IN ADVANCE, Western Union

Supply Ability : 5000/month

MOQ : 50

Model : BY57BLY005

Voltage : 36VDC

Rated speed : 4000rpm

Rated torque : 0.055N.m

Power : 23W

Length : 45MM

Weight : 0.25kg

Contact Now

Brushless DC Motor BY57BLY005

Motor has two flangs : one is round and other is square.

BLDC MOTOR 57mm BY57BLY005 36VDC 4000rpm high speed brushless motor

Specifications:

Model BY57BLY005
Voltage(VDC) 36
Power(W) 23
Rated speed(rpm) 4000
Rated current(A) 1.2
Rated torque(N.m) 0.055
Peak current(A) 3.5
Peak torque(N.m) 0.16
Back EMF(v/krpm) 5.55
Torque constnt(N.m/A) 0.053
Rotor inertia(Kg.cm 2) 30
Number of poles 4
Length 45
Motor weight 0.25

1.We can produce motor according to customer's requirements.

2. Motor can add gearbox and encoder.

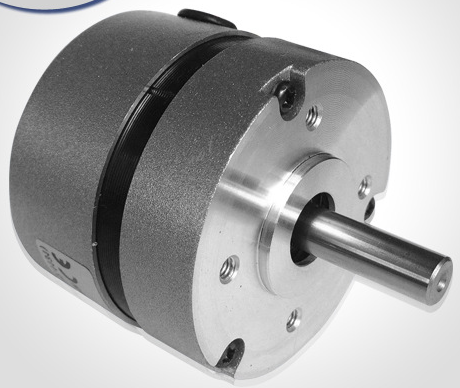

Figure ( round flange)

BLDC MOTOR 57mm BY57BLY005 36VDC 4000rpm high speed brushless motor

Figure ( square flange)

BLDC MOTOR 57mm BY57BLY005 36VDC 4000rpm high speed brushless motor
